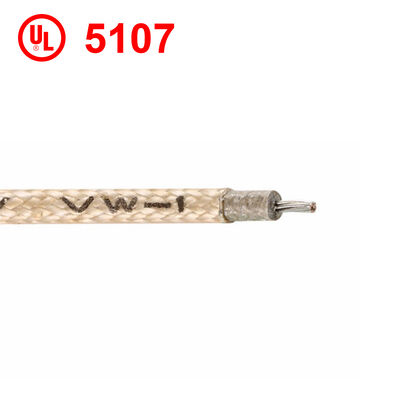

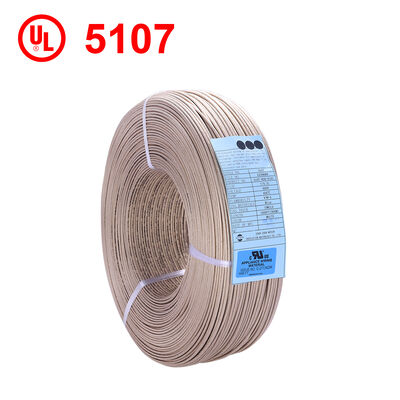

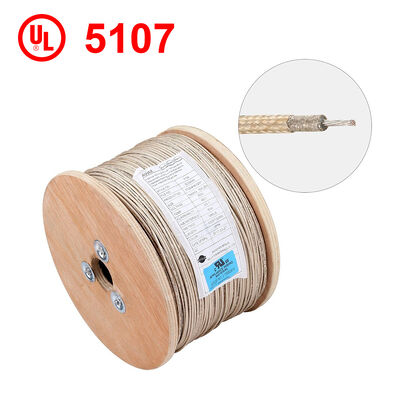

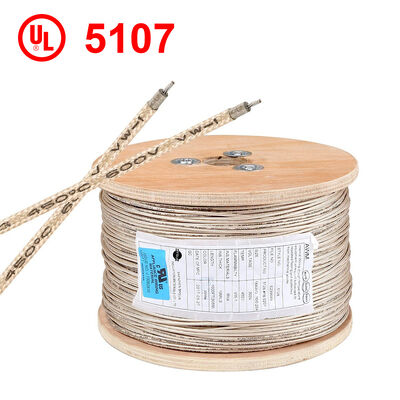

UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications

  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
  • UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications
Τόπος καταγωγής Γκουανγκντόνγκ, Κίνα
Μάρκα MYSUN
Πιστοποίηση UL Certification
Αριθμό μοντέλου E239689
Ποσότητα παραγγελίας min 1000
Τιμή AED 3.74-7.86
Λεπτομέρειες
Υλικό αγωγού Επικασσιτερωμένο σύρμα χαλκού Διάμετρος 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 22 AWG, 20 AWG
Μονωτικό υλικό Fiberglass Ονομαστική τάση 600V
Τύπος αγωγού Κονσερβοποιημένος Χαλκός Σχήμα Γύρω
Θερμοκρασία 450C Αγωγός Πυρήνας Χαλκού
Μόνωση Μονωτικό καλώδιο Mica Glass Υλικό Χαλκός
Σακάκι Fiberglass Πάχος μαρμαρυγίας ≥0,635mm, ≥0,762mm
Πάχος γυαλιού 0,178mm, 0,381mm Μήκος μονάδας 305μ (1000ft)
Κατασκευή αγωγών 7/0,16mm, 7/0,20mm, 7/0,25mm, 7/0,31mm, 16/0,254mm, 26/0,254mm, 41/0,254mm, 65/0,254mm, 35/0,45mm, 3
Επισημαίνω

UL Approval 5107 Mica Insulated Wire

,

450C Temperature Rating High Temperature Wire

,

Tinned Copper Conductor Fiberglass Cable
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
UL Approved 5107 Mica Wire - High Temperature Fiberglass Cable
Seeking Country Agents for a Win-Win Partnership
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 0 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 1
Product Description
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 2 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 3
Technical Specifications
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 4 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 5
SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) MICA THICKNESS (mm) GLASS THICKNESS (mm) DIAMETER (mm) UNIT LENGTH(m) (FT)
267/0.160.48≥0.6350.178≥2.15305(1000)
247/0.200.61≥0.6350.178≥2.25305(1000)
227/0.250.77≥0.6350.178≥2.40305(1000)
207/0.310.94≥0.6350.178≥2.60305(1000)
1816/0.2541.19≥0.6350.178≥2.85305(1000)
1626/0.2541.49≥0.6350.178≥3.15305(1000)
1441/0.2541.87≥0.6350.178≥3.50305(1000)
1265/0.2542.36≥0.6350.178≥4.65305(1000)
1035/0.453.06≥0.7620.381≥5.35305(1000)
867/0.403.75≥0.7620.381≥6.05305(1000)
6266/0.2544.75≥0.7620.381≥7.05305(1000)
4420/0.2546.02≥0.7620.381≥8.25305(1000)
Our Products
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 6 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 7
Applications
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 8 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 9
Company Profile
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 10 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 11 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 12 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 13
Certifications
UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 14 UL Approval 5107 Mica Insulated Wire with 450C Temperature Rating and Tinned Copper Conductor for High Temperature Applications 15
Why Choose Us
  • 27 years of experience in manufacturing high temperature cables and wires
  • Strict quality inspection under ISO9001, ISO14001, and IATF14969 systems
  • Comprehensive product certifications including UL, cUL, CSA, VDE, CCC, ROHS, REACH
  • Free samples available from stock inventory
  • One-week delivery for standard orders
  • Multiple payment methods: T/T, Western Union, and L/C
  • Strong R&D team for product design and testing
  • Easy one-stop purchasing experience
  • Quick after-sale technical advice and guidance
Frequently Asked Questions
Do you accept partial shipment?
Yes, partial shipment is accepted. However, the freight costs will be covered by the customer.
When the goods have quality problems, will you send us replacements?
If cables have quality issues, please provide details including quantity of defective cables, pictures, and labels. After confirmation, replacements will be shipped with your next order.
Can I order cable quantities lower than your MOQ?
We first check inventory availability. If in stock, lower quantities are acceptable. For out-of-stock items, quantities close to our MOQ are acceptable. Significantly lower quantities will be treated as sample orders with slightly higher pricing.
