Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications

  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
Τόπος καταγωγής Γκουανγκντόνγκ, Κίνα
Μάρκα MYSUN
Αριθμό μοντέλου V048486 CQC20011252316 E(z)-200/TX/FEP
Ποσότητα παραγγελίας min 3050

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Υλικό αγωγού Κονσερβοποιημένος χαλκός Διάμετρος 0,051mm2, 0,08mm2, 0,13mm2, 0,21mm2, 0,32mm2, 0,40mm2, 0,52mm2, 0,75mm2, 0,82mm2, 1,00mm2, 1,31mm2,
Μόνωση ΠΕΠ Ονομαστική τάση 300 V
Τύπος αγωγού Στερεός Σχήμα Γύρω
Εύρος Θερμοκρασίας 150 C, 200 ℃ Τύπος Μονωμένος
Μήκος μονάδας 305/1000 Μέγιστη αντίσταση στον αγωγό 381 Ω/KM, 239 Ω/ΚΜ, 150 Ω/ΚΜ, 94,2 Ω/ΚΜ, 59,4 Ω/ΚΜ, 46,6 Ω/ΚΜ, 37,4 Ω/ΚΜ, 24,8 Ω/ΚΜ, 23,5 Ω.Μ./ΚΜ, 2
Ονομαστικό πάχος 0,230mm, 0,380mm, 0,510mm Διάμετρος μόνωσης 0,80 mm, 0,85 mm, 0,95 mm, 1,10 mm, 1,20 mm, 1,35 mm, 1,50 mm, 1,60 mm, 1,95 mm, 2,15 mm, 2,30 mm, 2
Διάμετρος αγωγού 0,30mm, 0,38mm, 0,48mm, 0,60mm, 0,78mm, 0,85mm, 0,96mm, 1,12mm, 1,17mm, 1,35mm, 1,52mm, 1,60mm, 1,89 Κατασκευή 7/0.10, 7/0.127, 7/0.16, 19/0.12, 19/0.15, 19/0.17, 19/0.19, 19/0.225, 19/0.235, 19/0.26, 19/0.19/03
Επισημαίνω

Flame Retardant FEP Wire

,

Nickel Plated Copper FEP Wire

,

UAV Robot Generator Wire
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

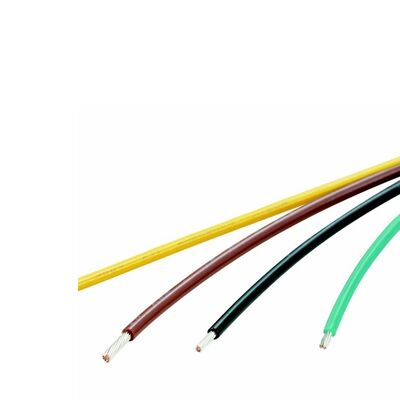

Flame Retardant FEP Wire 300V 200°C Nickel Plated Copper
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 0 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 1
Product Specifications
V048486 CQC20011252316 E(z)-200/TX/FEP Wire UL1330
Conductor Insulation Max. Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
0.051 7/0.10 0.30 0.230 0.80 381 610/2000
0.08 7/0.127 0.38 0.230 0.85 239 610/2000
0.13 7/0.16 0.48 0.230 0.95 150 305/1000
0.21 19/0.12 0.60 0.230 1.10 94.2 305/1000
0.32 19/0.15 0.78 0.230 1.20 59.4 305/1000
0.40 19/0.17 0.85 0.230 1.35 46.6 305/1000
0.52 19/0.19 0.96 0.230 1.50 37.4 305/1000
0.75 19/0.225 1.12 0.230 1.60 24.8 305/1000
0.82 19/0.235 1.17 0.380 1.95 23.5 305/1000
1.00 19/0.26 1.35 0.380 2.15 18.7 305/1000
1.31 19/0.30 1.52 0.380 2.30 14.7 305/1000
1.50 19/0.32 1.60 0.380 2.40 12.5 305/1000
2.08 19/0.375 1.89 0.380 2.70 9.22 305/1000
2.50 19/0.41 2.08 0.380 2.90 7.47 305/1000
3.31 19/0.475 2.39 0.380 3.20 5.75 100/328
4.00 19/0.52 2.70 0.380 3.50 4.68 100/328
5.26 19/0.60 3.00 0.380 3.80 3.62 100/328
6.00 19/0.64 3.25 0.380 4.00 3.12 100/328
8.37 68/0.40 3.90 0.510 4.95 2.23 100/328
10.00 37/0.59 4.30 0.510 5.35 1.87 100/328
13.30 133/0.36 5.20 0.510 6.25 1.41 100/328
16.00 133/0.393 5.60 0.510 6.65 1.17 100/328
Contact Us for Best Quote
Company Profile
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 2 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 3 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 4 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 5
Our Products
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 6 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 7
Applications
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 8 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 9
Our Overseas Clients
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 10 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 11
Exhibitions
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 12 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 13
Certifications
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 14 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 15
Frequently Asked Questions
1. Who Are We?

We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.

2. What Can We Provide?

We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.

3. Why Choose Us?
  • Free sample
  • Competitive price
  • High quality standard
  • Customized service
4. What Certifications Do We Have?

We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.

5. What Services Can We Provide?

Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.

Accepted Payment Currency: USD, EUR, CNY.

Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
