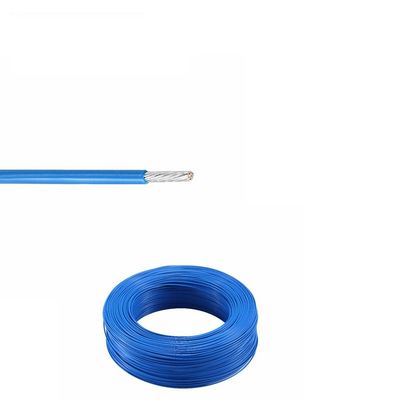

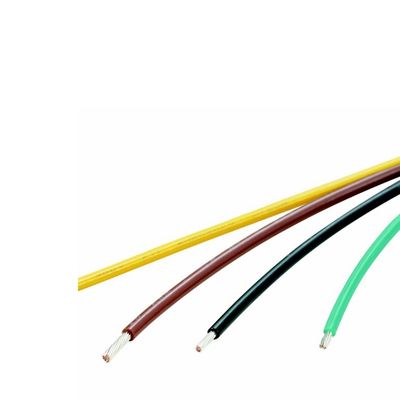

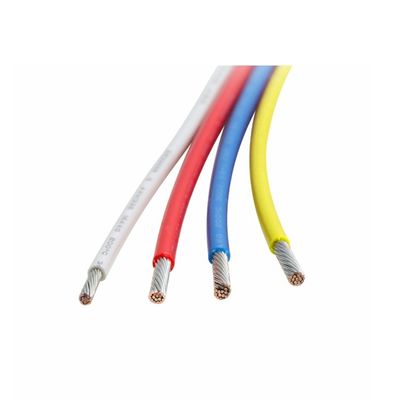

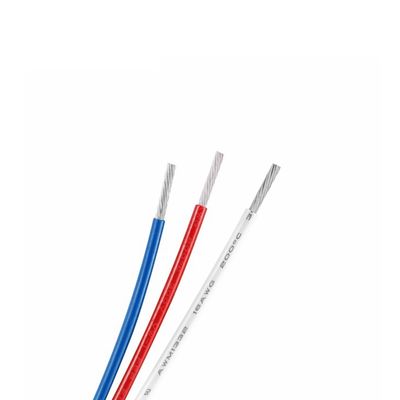

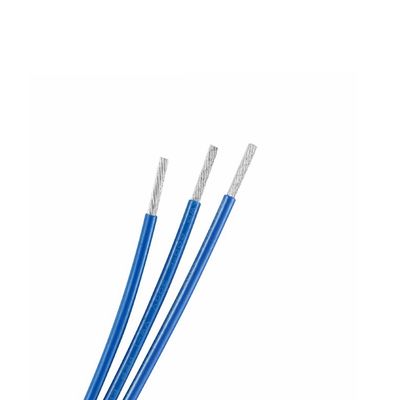

UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas

  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
  • UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas
Τόπος καταγωγής Γκουανγκντόνγκ, Κίνα
Μάρκα MYSUN
Αριθμό μοντέλου UL10072
Ποσότητα παραγγελίας min 3050

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Υλικό αγωγού Κονσερβοποιημένος χαλκός Διάμετρος 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 6 AWG, 8 AWG, 4 AWG, 2 AWG, 1 AWG, 2
Μόνωση Καουτσούκ Ονομαστική τάση 150V
Τύπος αγωγού Στερεός Σχήμα Γύρω
Τύπος Μονωμένος Βαθμολογία θερμοκρασίας 200℃
Μόνωση FEP ή PTFE, TFE Επιλογές αγωγού Κονσερβοποιημένος Χαλκός/Εαργυρωμένος Χαλκός
Μήκος μονάδας 305/1000 Ανώτατη αντίσταση 563 Ω/KM (32AWG)
Ονομαστικό πάχος 0,350 χλστ Κατασκευή 7/0,08 (32AWG)
πρότυπο UL758
Επισημαίνω

UL10072 High Temperature Wire

,

150V FEP Wire

,

200C TFE Wire
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
UL10072 FEP or TFE Wire 6-32AWG 150V 200°C Silver Plated Copper High Temperature Wire

Supplies Fortune 500 Companies - Top High Temperature Wire Supplier In China.

UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 0 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 1
Specification
UL10072 UL1330
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit length (M)(Ft)
327/0.080.240.3500.74563610/2000
307/0.100.300.3500.80381610/2000
287/0.1270.380.3500.88239610/2000
267/0.160.480.3500.98150610/2000
247/0.200.610.3501.1194.2610/2000
2219/0.150.770.3501.2759.4305/1000
2019/0.190.920.3501.4236.7305/1000
1819/0.2351.190.3501.6923.2305/1000
1619/0.301.490.3501.9914.6305/1000
1419/0.371.850.3502.378.78305/1000
1219/0.472.350.3502.875.64305/1000
1019/0.433.000.3503.553.55305/1000
937/0.4753.350.5104.372.813305/1000
837/0.543.800.5104.822.23305/1000
737/0.604.240.5105.261.768305/1000
637/0.684.790.5105.811.403305/1000
Click Contact us Get the Best Quote
Company Profile
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 2 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 3 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 4 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 5
Our Products
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 6 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 7
Application
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 8 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 9
Our Overseas Clients
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 10 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 11
Exhibition
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 12 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 13
Certifications
UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 14 UL10072 FEP High Temperature Wire 150V 200C for Electronic Equipment Back Panel Areas 15
FAQ
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
  • Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
  • What Certifications Do We Have? We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
  • What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
