6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications

  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
Τόπος καταγωγής Guangdong, Κίνα
Μάρκα Mysun
Αριθμό μοντέλου UL4330
Ποσότητα παραγγελίας min 1

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Υλικό αγωγού Χαλκός Μόνωση Λάστιχο, λάστιχο σιλικόνης
Ονομαστική τάση 300 V Τύπος αγωγού Απομεμονωμένος
Βαθμολογία θερμοκρασίας 150C Μέγεθος αγωγού 14AWG, 16AWG, 18AWG
Βασικός αριθμός 6, 7, 8 Διάμετρος αγωγού 1.17mm, 1.47mm, 1.89mm
Πάχος μόνωσης 0,45mm, 0,55mm Ανώτατη αντίσταση 5.50-10.00 Ω/km
Μήκος μονάδας 305/610 μέτρα Κατασκευή 7/0,39, 7/0,49, 41/0,254
Ονομαστικό πάχος 0,45mm, 0,55mm Διάμετρος μόνωσης ≥0,40mm
Μήκος συσκευασίας 305/610 μέτρα
Επισημαίνω

6 Core Silicone Insulated Wire

,

7 Core Multicore Wire

,

8 Core Silicone Rubber Wire
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
6 Core 7 Core 8 Core 14AWG 16AWG 18AWG UL Standard Silicone Insulated Multicore Wire
Premium Silicone Rubber Wire Supplier
Supplies Fortune 500 companies. Top Silicone Rubber Wire Supplier in China.
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 0 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 1
UL4330 Specifications
Conductor Construction (No./mm) Diameter (mm) Insulation Nominal Thickness (mm) Diameter (mm) Max. Cond. Resistance (Ω/KM) Unit Length (M)/(Ft)
2×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 5.50-7.00
2×16 7/0.49 1.47 ≥0.40 0.45 ≥0.40 6.00-7.50
2×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.00-9.50
3×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 5.50-7.00
3×16 7/0.34 1.47 ≥0.40 0.45 ≥0.40 6.00-7.50
3×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.00-9.50
4×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 6.00-7.50
4×16 7/0.49 1.47 ≥0.40 0.45 ≥0.40 6.50-8.00
4×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.50-10.00
Multi-core silicone cables can be customized upon request

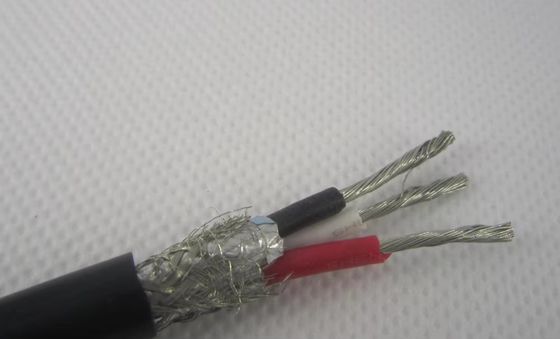

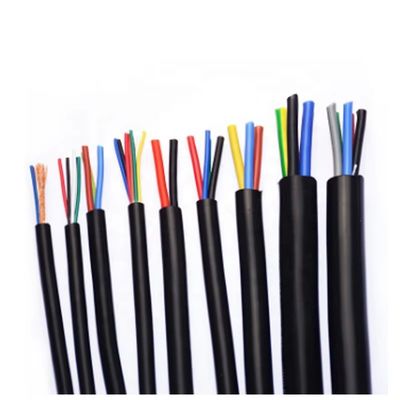

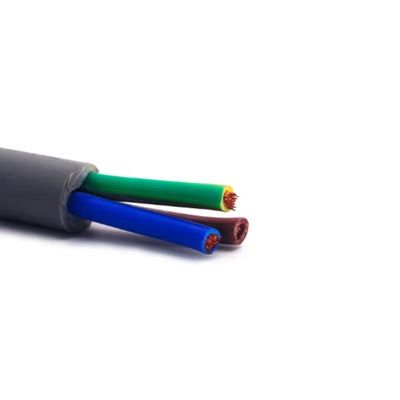

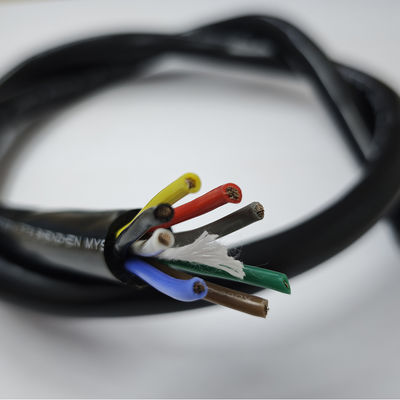

Product Gallery
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 2 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 3 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 4 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 5 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 6 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 7
Company Profile
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 8 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 9
Our Overseas Clients
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 10
Exhibition
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 11
Certifications
6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications 12
Frequently Asked Questions
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
  • Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
  • What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
